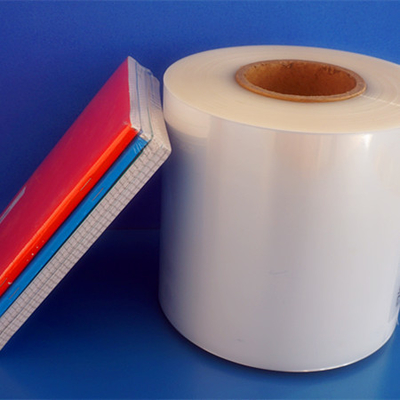

Custom Size Center Fold ( CF ) Polyolefin Shrink Wrap Film For Exercise Book

Custom Size Center fold ( CF ) Polyolefin Shrink Wrap Film for exercise book

It is recommended for packaging applications where maximum optics and durable wrapping are required. Strong seals and an excellent shrink appearance are obtained with medium and high speed packaging systems. This film excels with static seal systems.

Center Fold Gauge & Roll Lengths

• 45 Gauge - 5,830 Feet
• 60 Gauge - 4,375 Feet
• 75 Gauge - 3,500 Feet
• 100 Gauge - 2,620 Feet
• 125 Gauge - 2,100 Feet
• 150 Gauge - 1,750 Feet
• 200 Gauge - 1,310 Feet

• Special Features

• Superior transparency and gloss
• High burnout resistance
• Good stiffness and stability
• Balanced MD/TD properties

• Shrink & Seal Properties

• Strong seals, both impulse and electrostatic
• No deposits on sealing wires
• Easily controlled shrink force
• Wide shrink temperature range

• Safety & Environment

   No CFC's nor any residues of heavy metals. The gas generated during sealing of Syfan shrink films is comprised of hydrocarbon derivatives of the pure raw material and contains no harmful substances, irritants, or chroline derivatives.

•

  Property	Unit	Method	Nominal Values
  Density	g/cm³	ASTM D-1505	0.91
  Haze	%	ASTM D-1003	2.4
  Gloss 45°	%	ASTM D-2459	87
  Tensiles Strength	N/mm2	ASTM D-882	MD 105 TD 120
  Elongation	%	ASTM D-882	MD 95 TD 90
  Shrinkage at 120°C Oil Bath 5 Sec	%	Syfan Method	MD 60 TD 63
  Tearing Resistance	g/25 µ	Elmendorf	MD 25 TD 20
  Coefficient of Friction		Film/Film	0.2
  MVTR (15 mic)	g/m²/24hr@90%RH37°C	ASTM E-96	23
  OTR (15 mic)	cc/m²/24hr/1atm@25°C	ASTM D3985-05(2010)e1	11000
