Product Details:
|
Product: | Shrink Film POF | Usage: | Heat Shrink Packaging |
---|---|---|---|
Application: | Box | Material: | Polyolefin |
Type: | Centre Folded | Feature: | High Shrinkage Rate, And Good Heat-seal Performance |
Hardness: | Soft | Processing Type: | Multi - Layer Co - Extrusion |
Color: | Transparent | Thickness: | 12mic-40mic |
Certificate: | SGS.MSDS.ISO9001 | Raw Material: | DOW Chemical |
Port: | Shanghai | Package: | Carton+Pallet |
High Light: | Soft Shrink Film POF 40mics,40mics Centre Folded Shrink Film POF,Centre Folded Shrink Film POF 40mics |

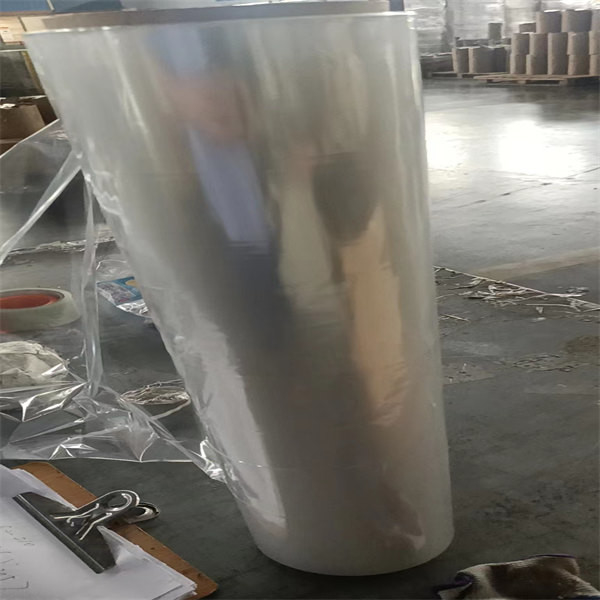

Soft Centre Folded Polyolefin Material Shrink Film POF For Box
Shrink film ( POF ) is a kind of multi - layer co - extrusion environmentally friendly shrink packaging material. POF has the remarkable characteristics of high transparency, high shrinkage rate, and good heat-seal performance. It also has the advantages of polyethylene film and polypropylene film, so the performance of its products is far Beyond mere polypropylene.
Vinyl film and polyethylene film have been widely promoted and applied in the international market. The advantages of POF film are: high shrinkage, high gloss, high transparency, good decorative performance of the product, good flexibility, low product density, and can effectively reduce packaging costs;
Outstanding heat sealing performance, high sealing strength, good tear resistance, puncture resistance, wide application range, suitable for semi-automatic, fully automatic high-speed packaging equipment and manual packaging; POF is non-toxic, environmentally friendly, and can be used for food Packaging .POF is mainly used in the packaging of toys, board games, books, cardboard boxes, confectionery,shoe,, stationery, cosmetics, food,handicrafts, photo frames,other wood products,pesticides, daily necessities, cosmetics, dairy products, medicine, video ,small home appliance,skin care products ,household products etc.
TEST ITEM | UNIT | ASTM TEST | TYPICAL VALUES | ||||||
Thickness | 10um | 12um | 15um | 19 um | 25um | 30 um | |||
TENSILE | |||||||||
Tensile Strength(MD) | N/mm2 | D822 | 125 | 123 | 130 | 130 | 130 | 130 | |
Tensile Strength(TD) | 119 | 120 | 120 | 120 | 120 | 120 | |||
Elongation(MD) | % | 116 | 120 | 120 | 125 | 130 | 130 | ||
Elongation(TD) | 112 | 120 | 115 | 115 | 125 | 125 | |||
TEAR | |||||||||
MD | G | D1992 | 9.8 | 10.5 | 14.5 | 17.5 | 23.5 | 28.5 | |
TD | 9.7 | 10.0 | 13.5 | 16.0 | 23 | 27.0 | |||
SEAL STRENGTH | |||||||||
Hot Seal(MD) | N/mm | F88 | 0.95 | 0.95 | 1.01 | 1.03 | 1.25 | 1.55 | |
Hot Seal(TD) | 0.91 | 0.98 | 1.06 | 1.06 | 1.3 | 1.65 | |||
SHRINKAGE PROPERTYIES | TD | MD | MD | TD | |||||
SHRINKAGE | 100°C | % | D2732 | 20 | 22 | 31 | 20 | 28 | |
110°C | 47 | 38 | 45 | 34 | 45 | ||||
120°C | 65 | 58 | 63 | 57 | 60 | ||||
130°C | 68 | 65 | 67 | 64 | 65 | ||||
Shrink Tension | 100°C | Mpa | D2838 | 1.7 | 1.8 | 2.65 | 1.85 | 2.55 | |
110°C | 2.5 | 2.7 | 3.5 | 2.85 | 3.65 | ||||
120°C | 2.6 | 2.8 | 3.65 | 2.90 | 3.60 | ||||
130°C | 2.3 | 2.6 | 3.15 | 2.70 | 3.05 |
Thickness (mic/gauge) | 12/ 50 | 15/ 60 | 19/ 75 | 25/100 | 30/12 |
Width (mm) | 200-2200 | 200-2200 | 200-2200 | 200-2200 | 200-2200 |
Length (Single Wound) | 3340m | 2667m | 2133m | 1600m | 1280m |
Length (Center Fold) | 1667m | 1332m | 1067m | 800m | 640m |
Factory
FAQ
A6:20 feet container can load about 15 tons with carton.40 HQ container can load about 24.5 tons with carton and pallet.
