Product Details:
|
| Product: | POF Heat Shrink Film For Tissue | Material: | Pof |
|---|---|---|---|
| Type: | Center Fold And Single Wound | Usage: | Tissue |
| Feature: | Soft And Tough | Processing Type: | Blow Molding |
| Color: | Transparent | Thickness: | 12 - 40 Microns |
| Certificate: | SGS.MSDS.ISO9001 | Port: | Shanghai |
| High Light: | 25 Microns POF Heat Shrink Films 450mm,450mm POFs Heat Shrink Films,POFs Heat Shrink Films 450mm |
||

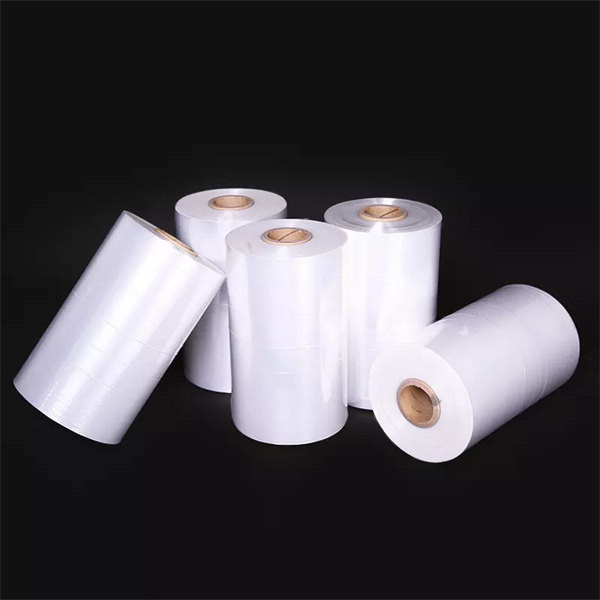

25 Microns * 450mm POF Heat Shrink Film For Tissue
POF Heat Shrink Film is a 5 - layered, soft and heat shrinkable film with superior clarity and gloss. With features of tough, cold - resistant, soft and strong seal, the package will stay taut and wrinkle free and won't crack when temperature abused, ensuring the best appeal. It can protect your products efficiently and doesn't emit harmful gas during usage Shrink Film is a multi - purpose shrink film, In addition to the ideal film for regular shape products, it is also great for irregular products which works easily on both automatic and semi - automatic packing machines.
It's used in household product,consumables,paper tissue,stationery,book,stretched canvas, food,toy,game,fasket,clock,ironing board,clothes dryer etc.
THICKNESS: ( 0.012/0.015/0.019/0.025mm )
WIDTH RANGE: 200 - 2000mm
LENGTH RANGE: 500 - 8000M
| ITEM | UNIT | TYPICAL VALUES | TEST METHOD | ||||
| Thickness | micron | 12um | 15um | 19um | 25um | ASTM-D374 | |
| Density | g/cm3 | 0.92 | 0.92 | 0.92 | 0.92 | ASTM-D1505 | |
| Tensile Strength | MD | N/mm2 | 120 | 115 | 110 | 105 | ASTM-D882-02 |
| TD | 115 | 110 | 105 | 100 | |||
| Elongation at Break | MD | % | 115 | 120 | 125 | 125 | ASTM-D882-02 |
| TD | 110 | 115 | 115 | 115 | |||
| Tear Resistance | MD | N | 3.5 | 4.0 | 4.5 | 6.7 | ASTM-D1938-03 |
| TD | 3.8 | 4.0 | 4.6 | 7.9 | |||
| Seal Strength | N/15mm | 9.5 | 10.0 | 12.0 | 13.0 | QBT23-58 | |
| C.O F(Dynamic) | 0.18 | 0.18 | 0.15 | 0.15 | ASTM-D1894-01 | ||
| C.O.F(Static) | 0.20 | 0.20 | 0.18 | 0.16 | ASTM-D1894-01 | ||
| Haze | % | 2.5 | 2.5 | 2.5 | 2.5 | ASTM-D1003 | |
| MD/TD | MD/TD | MD/TD | MD/TD | ||||
| Free Shrink age Rate | 90℃ | % | 13/13 | 13/12 | 12/14 | 12/12 | ASTM-D2732-83 |
| 100℃ | 28/26 | 25/26 | 24/26 | 25/29 | |||
| 110℃ | 36/35 | 35/34 | 34/34 | 32/35 | |||
| 120℃ | 60/60 | 60/60 | 60/60 | 60/60 | |||
| 130℃ | 65/65 | 65/65 | 65/65 | 64/65 | |||
