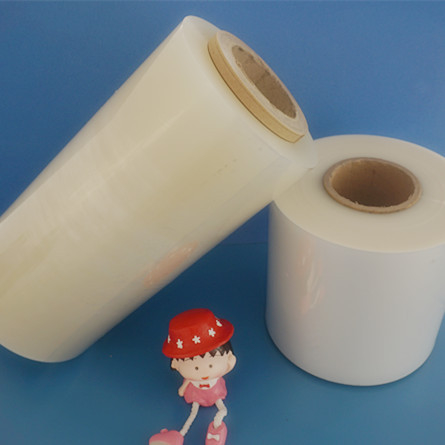

Packing Material Plastic Film Centerfold Polyolefin Shrink Film For Notebook

Packing Material Plastic Film Centerfold Polyolefin Shrink Film For Notebook
Packing Material Plastic Film Centerfold Polyolefin Shrink Film For Notebook

Large Image :  Packing Material Plastic Film Centerfold Polyolefin Shrink Film For Notebook

Product Details:
Place of Origin: China
Brand Name: Guanghong
Payment & Shipping Terms:
Minimum Order Quantity: 3000 KGD
Price: Negotiation
Packaging Details: Carton+Pallet
Delivery Time: 7 - 14 days
Payment Terms: D/P, T/T
Supply Ability: 3000 tons per year

Packing Material Plastic Film Centerfold Polyolefin Shrink Film For Notebook

Description
Product: Packing Material Plastic Film Centerfold Polyolefin Shrink Film For Notebook Material: Pof
Type: Centerfold Usage: Notebook
Feature: High Strength Hardness: Soft
Processing Type: Multiple Extrusion Transparency: Clarity
Certificate: SGS.MSDS.ISO9001
High Light:

119um Packing Centerfold Polyolefin Shrink Film

,

Multiple Extrusion Centerfold Polyolefin Shrink Film

,

15um Centerfold Polyolefin Shrink Film

Packing Material Plastic Film Centerfold Polyolefin Shrink Film For Notebook



Products Advantage

It is the number one choice of shrink wrap film across a wide range of industries due to its unique properties. Polyolefin shrink film contains no plasticisers nor chlorine, and releases fewer odours when sealed than PVC shrink wrap making it suitable for food use. Polyolefin shrink wrap not only boasts higher clarity than other shrink wrap films, it also creates a stronger seal and is not compromised by changes in temperature.

Buy your polyolefin shrink film rolls from us we can seal your products with a professional finish. Used in conjunction with a desktop heat shrink system, polyolefin shrink wrap can be used to seal an array of products such as toys and games, food and stationery.

1) Shrinks quickly and evenly in all directions

2) Very high strength

3) Food safe

4) Environmentally friendly compared with PVC &PE film

5) Can be processed through standard recycling systems

Our Polyolefin shrink wrap is centre folded on the roll, making it easier to handle and store. Centre folded widths are mentioned in the table above - if you are buying a 600mm wide sheet it will be folded onto a 300mm wide roll. The core diameter of each roll is 76mm.

Products Application

Food, beverage, household articles packaging
Drug, health-care products outside or combinative packaging
Plastic & hardware packaging
Stationery, toys & books packaging

Paper Tissue,stretched canvas etc



ML (Multi Layer) Polyolefin Shrink Film Technical Data

  UNIT ASTM TEST TYPICAL VALUES
Thickness(micron)     12um 15um 19um 25um 30um
Tensile Properties
Tensile Strength (MD) N/mm2 D882 115 110 110 95 85
Tensile Strength (TD) 110 105 105 90 80
Elongation(MD) % 115 120 125 130 130
Elongation(TD) 110 115 115 125 125
Tear Resistance
MD at 400gm gf D1922 10.5 14.5 17.5 23.5 28.5
TD at 400gm 10.0 13.5 16.0 23.0 27.0
Seal Strength
MD/Hot wire seal N/mm2 F88 0.65 0.81 1.03 1.25 1.55
TD/Hot wire seal 0.68 0.86 1.06 1.30 1.65
COF(Film to Film)
Static   D1894 0.25 0.22 0.22 0.25 0.25
Dynamic   0.24 0.20 0.24 0.26 0.25
OPTICS
Haze   D1003 2.2 2.5 3.2 3.9 4.5
Clarity   D1746 98.5 98.0 97.0 96.0 92.0
Gloss   D2457 85.5 87.0 83.5 81.5 80.0
BARRIER
Oxygen Transmission Rate cc/m2/day D3985 11800 10800 7200 5400 4500
Water Vapor Transmission Rate cm/m2/day F1249 45.5 38.5 26.5 22.5 20.5
SHRINKAGE PROPERTIES   UNIT ASTM TEST MD TD MD TD
Free Shrinkage 110*C % D2732 22 31 20 28
110*C 38 45 34 45
120*C 58 63 57 60
130*C 65 67 64 65
SHRINK TENSION       MD TD MD TD
Shrink Tension 100*C Mpa D2838 22 31 20 28
110*C 38 45 34 45
120*C 58 63 57 60
130*C 65 67 64 65

MDMachine Direction TDTransverse Direction
Food & Non Food Shrink Film





Packing Material Plastic Film Centerfold Polyolefin Shrink Film For Notebook 0



Factory

Packing Material Plastic Film Centerfold Polyolefin Shrink Film For Notebook 1

Packing Material Plastic Film Centerfold Polyolefin Shrink Film For Notebook 2



Our Service

Your inquiry related to our product & price will be replied within 24hours.
Well-trained & experienced staff are to answer all your inquiries in English of course.
We can supply many type shrink films, also can be as customer-oriented, can service you at any time if needed.
OEM & ODM projects are highly welcomed, we have strong R&D team here to help.
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back if you got any question. We believe that we supply High quality & one stop solution produced as per customer specification & requirement.
