Product Details:
|
Commodity: | Standard POF Shrink Film For Cosmetic | Material: | Pof |
---|---|---|---|
Type: | Shrink Film | Usage: | Cosmetic |
Feature: | Moisture Proof | Color: | Transparent |
High Light: | 12um centerfold polyolefin shrink film,Moistureproof centerfold polyolefin shrink film,Cosmetic pof shrink film |

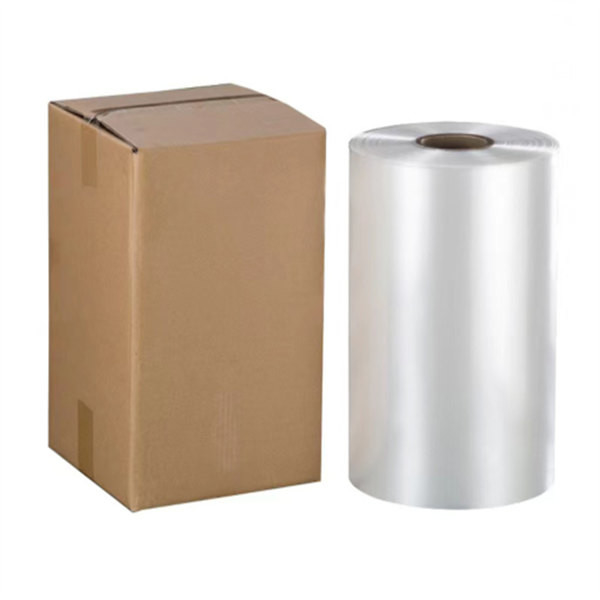

Moistureproof Standard POF Shrink Film For Cosmetic
The composites of the film are Polypropylene (PP) and Linear Low Density Polyethylene(LLDPE).These materials are non-toxic and non-smelly Environmentally Friendly type (POF) 5-Layer Co-extruded Polyolefin Shrink Film produced by our company are featured with high shrinkage ratio (over 60%), moderate air barrier property, flexible tenacity and hermetic sealing property, cold resistance and soft, non-brittle, damp-proof and anti-static. it is a strong and high clarity biaxial oriented heat shrinkable film that has stable & balanced shrinkage and soft corner during packaging. it can protect your products efficiently and doesn’t emit harmful gas during usage.
Material: POF Type: Shrink Film
Usage: Packaging Film Feature: Water Soluble
Hardness: Soft Processing Type: Blow Molding
Transparency: Transparent Place of Origin: Jiangsu, China (Mainland)
Width: Min.200mm-Max1500mm Thickness: 12microns-30microns
TEST ITEM | UNIT | ASTM TEST | TYPICAL VALUES |
THICKNESS | 12um 15um 19um 25um 30um | ||
TENSILE | |||
Tensile Strength(MD) | N/mm2 | D882 | 115 110 110 95 85 |
Tensile Strength(TD) | 110 105 105 90 80 | ||
Elongation(MD) | % | 115 120 125 130 130 | |
Elongation(TD) | 110 115 115 125 125 | ||
TEAR | |||
MD | g | D1922 | 10.5 14.5 17.5 23.5 28.5 |
TD | 10.0 13.5 16.0 23.0 27.0 | ||
SEAL STRENGTH | |||
MD/Hot Wire Seal | N/mm | F88 | 0.65 0.81 1.03 1.25 1.55 |
TD/Hot Wire Seal | 0.68 0.86 1.06 1.30 1.65 | ||
COF(Film To Film) | |||
Dynamic | D1894 | 0.23 0.22 0.22 0.25 0.25 | |
Static | 0.24 0.23 0.24 0.26 0.25 | ||
OPTICS | |||
Haze | D1003 | 2.2 2.6 3.2 3.9 4.5 | |
Clarity | D1746 | 98.5 98.0 97.0 95.0 92.0 | |
Gloss @ Deg | D2457 | 85.5 87.0 83.5 81.5 80.0 | |
BARRIER | |||
Oxygem Transmission Rate | cc/m2/day | D3985 | 11300 10800 7200 5400 4500 |
Water Vapor Transmission Rate | gm/m2/day | F1249 | 45.5 38.5 26.5 22.5 20.5 |
SHRINKAGE PROPETIES | MD TD MD TD | ||
100°C | % | D2732 | 22 31 20 28 |
Free Shrinage 110°C | 38 45 34 45 | ||
120°C | 58 63 57 60 | ||
130°C | 65 67 64 65 | ||
100°C | Mpa | D2838 | 1.80 2.65 1.85 2.55 |
Shrink Tension 110°C | 2.70 3.50 2.85 3.65 | ||
120°C | 2.80 3.65 2.90 3.60 | ||
130°C | 2.60 3.15 2.70 3.05 |
Food, beverage, household articles packaging
Drug, health-care products outside or combinative packaging
Plastic & hardware packaging
Stationery, toys & books packaging
Electronic element & AV products packaging Etc
Thickness is well- uniformity, shrink rate can reach 65%, widely applied on irregular product packaging
Coefficient of fraction stable, it's convenient for high-speed package processing
Proportion average between the film layers, perfect sealing
High temperature resistance, can keep toughness property under -20oC
High tensile strength, apply for manual, semi-automatic & high speed automatic packaging machinery
Packaging Details: 100pcs/1 bag , 5000pcs/1 carton , then 50-60cartons / 1 pallet which can be used by international transportation .
Delivery Details: 14-21 Days after we get the 30%deposit .
